Rock bolting is one of the most widely used support methods in underground construction projects. It involves inserting long steel bolts into drilled holes in the rock and anchoring them in place, typically with mechanical anchors or grout, to bind the rock mass together.
Developed in mining over a century ago and later adopted in civil tunnelling, rock bolting today is an essential element of modern tunnelling methods and continues to evolve with new materials and designs.

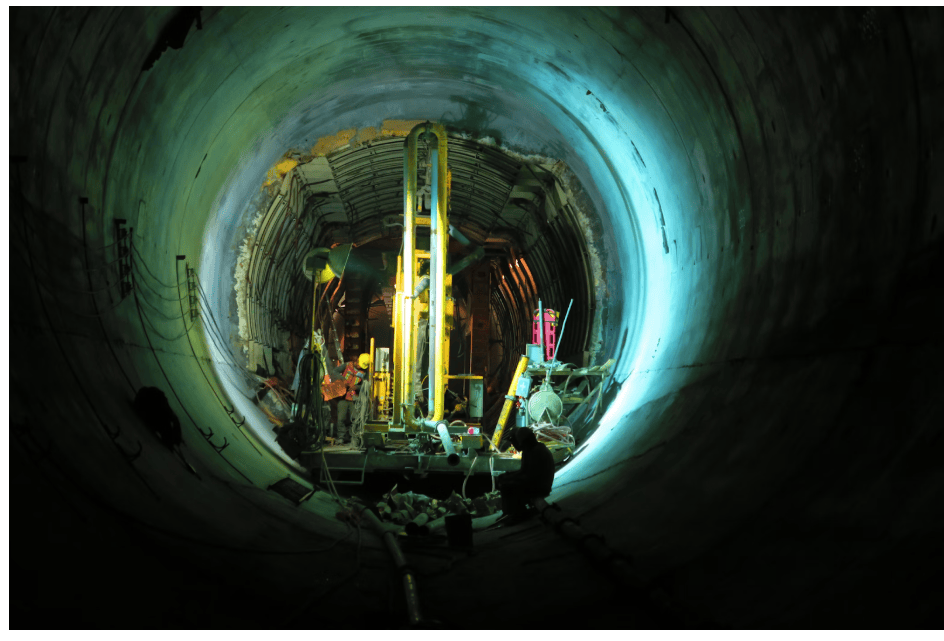

Rock Bolting in Underground Construction
In many tunnels and mines, rock bolts form the primary means of ground support to stabilise openings. They are used in different geological conditions by choosing appropriate bolt types and installation techniques for the rock environment. For example, expansion-shell anchors (a type of mechanical rock bolt) work well in hard, intact rock, while resin-grouted bolts are recommended for closely jointed or softer rock masses.
In practice, rock bolting can be applied shortly after each round of excavation (such as after a blast in drill-and-blast tunneling) to quickly secure the freshly exposed rock. The bolts may be left ungrouted for short-term stability or fully grouted with cement or resin for long-term support and corrosion protection. This adaptability allows rock bolts to be used as both temporary and permanent support.
Rock bolting is often combined with other support elements. For instance, in conventional tunnel construction, radial rock bolts are installed along with wire mesh and a layer of shotcrete to form a reinforced shell, sometimes supplemented by steel arches in very weak ground. Such combinations enable the rock to support itself to a large extent while providing additional strength where needed.
Advantages of Rock Bolting
Rock bolting offers several advantages in underground construction. First and foremost, it significantly enhances safety by stabilising rock masses and reducing the risk of rockfalls or collapses. Bolts improve ground control, meaning they limit rock movement and surface subsidence around the excavation.
They are also relatively economical compared to building large concrete or steel structures; the materials and installation are cost-effective in many scenarios, and installation is faster and less labour-intensive than erecting heavy support frames. Rock bolts can be adapted to various geological conditions and project requirements, offering versatility for engineers to design support systems that suit the local rock strength and stresses.
Another benefit is that using rock bolts minimises the need for extensive over-excavation — they take up little space, so the tunnel or mine opening does not have to be enlarged to accommodate bulky supports.
In addition, modern rock bolting can be done with mechanised equipment, allowing rapid installation for large projects. Once installed, rock bolts provide long-term stability and can last for decades (especially if properly grouted and protected from corrosion), keeping maintenance needs relatively low.
Limitations and Challenges of Rock Bolting
Although rock bolting is effective, it has certain limitations. The installation process requires specialised drilling equipment and skilled personnel, which can raise initial costs. Corrosion poses another concern, particularly in wet or chemically aggressive environments, where untreated steel bolts may degrade over time and lose their strength.
Regular maintenance is necessary to ensure rock bolts perform as intended. Periodic inspections and re-torquing help detect loose or damaged bolts before failures occur. Geological constraints also affect performance, as weak or heavily fractured rock may not provide sufficient anchorage.
Additionally, some bolt types, such as cement-grouted bolts, take time to reach full strength, which may not be ideal for projects needing immediate stabilisation. Engineers must assess these factors carefully and incorporate supplementary support methods when required.
Industry Standards and Safety Considerations
Rock bolting and other support methods must comply with industry standards and safety regulations to ensure stability and worker protection. Engineers follow strict guidelines regarding bolt spacing, installation procedures, and material selection to maintain structural integrity. Support systems are designed to accommodate specific ground conditions, preventing potential failures.
Regulations typically mandate that rock bolts be installed in a uniform pattern with designated spacing, length, and tension as specified in approved support plans. Safety procedures require that reinforcement be installed as early as possible, minimising the risk of roof falls in newly excavated areas.
Quality control plays a critical role in maintaining reliability. Engineers check bolt torque using specialised tools and conduct pull tests to confirm secure anchorage. Selecting the appropriate bolt type is equally important, as no single design is suitable for all conditions. Factors such as rock strength, stress levels, and groundwater presence must be evaluated when designing a bolting system.
Regular inspections and documentation ensure long-term safety. Engineers keep detailed records of support installations and conduct periodic checks for signs of corrosion or loosening. Protective measures such as corrosion-resistant coatings or grout-filled bolts enhance durability in environments where moisture or chemicals may compromise structural integrity.
Conclusion
Rock bolting is an effective and widely used support method in underground construction, but it is not always the single best solution. The choice of reinforcement depends on geological conditions, and engineers often combine multiple support techniques to achieve the highest level of stability and safety.
